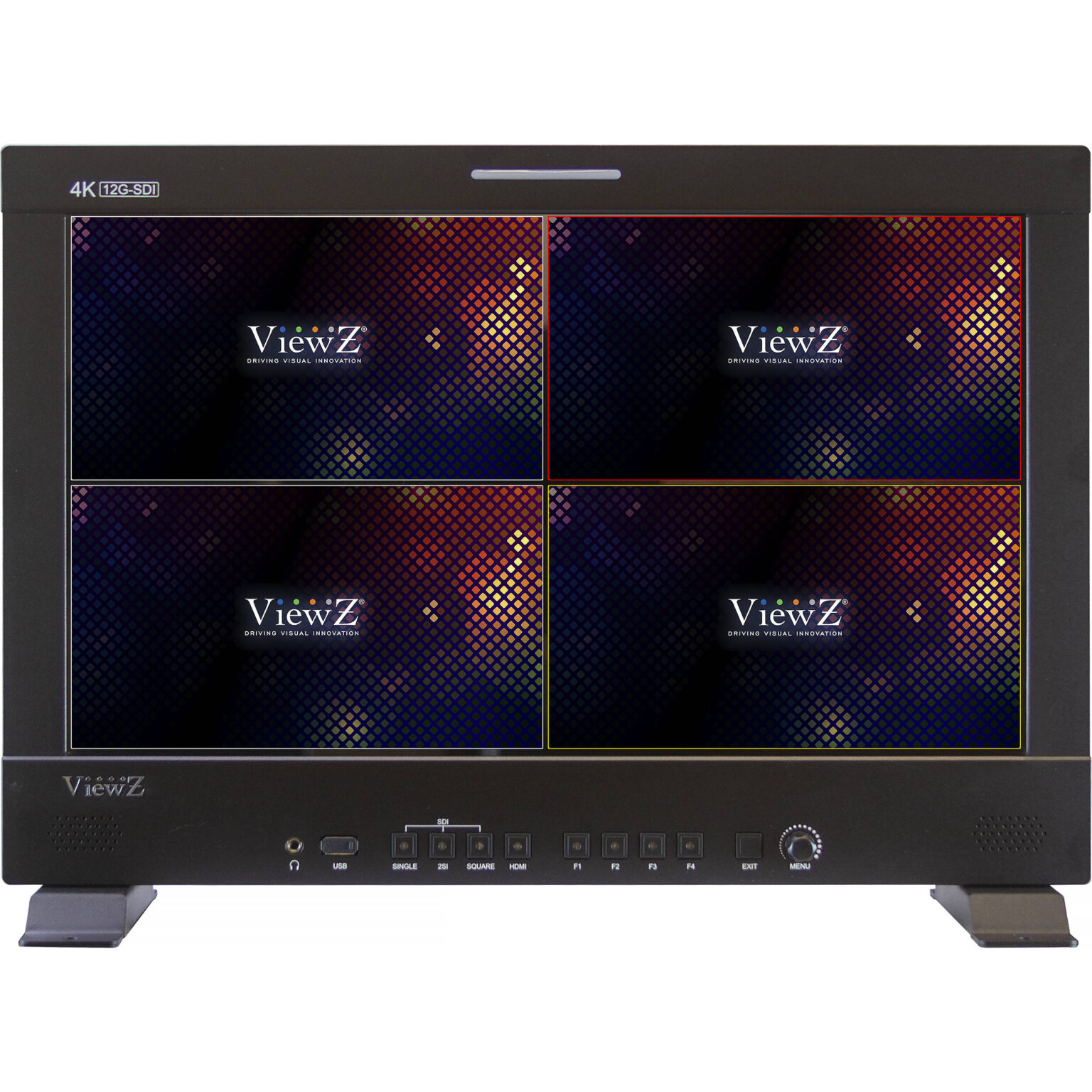

The ViewZ 17.3″ 4K 12G-SDI Video Production Monitor stands out as a reasonably priced option for both studio and field use. This monitor offers a variety of features designed for professional video production.
Display and Panel Specifications
The ViewZ monitor boasts a 17.3-inch 4K display with a resolution of 3840 x 2160 pixels. It delivers a contrast ratio of 1200:1 and a pixel density of 254 ppi. While it is advertised as a 10-bit panel, it is likely an 8-bit panel with 2-bit Frame Rate Control (FRC) for enhanced color depth. The brightness is rated at 400 cd/m², and it covers 91% of the DCI-P3 color space, which may be sufficient for many production environments but might not meet the needs of all high-end color-critical applications.
Connectivity and Input Options
This monitor is equipped with a range of connectivity options suitable for various professional setups:
- 12G-SDI Interfaces: Includes two 3G-SDI and two 12G-SDI ports.
- Quad-SDI and Dual-SDI Multiview: Supports multiple SDI configurations for versatile monitoring setups.
- Single SDI/HDMI Inputs: Provides flexibility for different video sources.
- SDI Loop-Through: Allows signal daisy-chaining.
- Video Formats: Supports 12G-SFP, 12G/6G/3G/HD-SDI, and HDMI 2.0, displaying resolutions up to 4096 x 2160 and 3840 x 2160 at various frame rates (60/50/30/25/24p).
Monitoring Tools and Features
The ViewZ monitor includes a comprehensive suite of monitoring tools:
- SMPTE ST2084 and HLG Support: For advanced HDR and high dynamic range content.
- Timecode Support: Includes LTC/VITC.
- Built-In Closed Captioning: Provides accessibility features for content production.
- LED Tally Light: Located at the top of the display for on-air indication.
- Waveform/Vectorscope/Histogram: Essential tools for accurate color and exposure monitoring.
- False Color/Image Freeze: Useful for visual analysis of image details.
- Markers and Under Monitor Display (UMD): Facilitates precise framing and display of essential information.
- Color Temperature and Color Space Settings: Customizable to match production requirements.
- Gamma Options: Includes settings for various gamma curves (1.8, 2.0, 2.2, 2.35, 2.4, 2.6, and 2.8).
Audio Features
The monitor provides 2-channel audio output from a total of 16 channels, with monitoring capabilities through both an audio vector and a 3.5mm headphone input.
Design and Portability
Weighing 8.6 lbs (3.9 kg), the ViewZ monitor is relatively lightweight and offers multiple power options:
- Mains Power
- DC Input
- Built-In V-Mount Battery Plate: Enhances mobility for field use.
Pricing and Availability
The ViewZ 17.3″ 4K 12G-SDI Video Production Monitor is available for purchase at a retail price of $2,989.95 USD.
In summary, the ViewZ monitor presents a solid combination of advanced features and connectivity options at a competitive price point, making it a viable choice for many professional video production needs.
